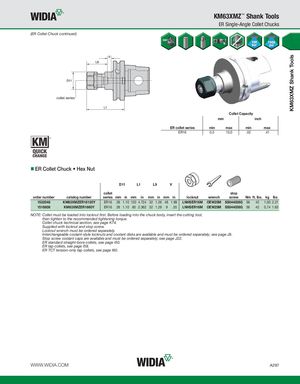

KM63XMZ Shank Tools KM63XMZ™ Shank Tools ER Single-Angle Collet Chucks (ER Collet Chuck continued) collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER Collet Chuck • Hex Nut D11 L1 L9 V collet stop order number catalog number series mm in mm in mm in mm in locknut wrench screw Nm ft. lbs. kg lbs 1532048 KM63XMZER16120Y ER16 28 1.10 120 4.724 32 1.26 48 1.89 LNHSER16M OEW25M SS044038G 56 42 1,00 2.21 1516808 KM63XMZER1660Y ER16 28 1.10 60 2.362 32 1.26 9 .35 LNHSER16M OEW25M SS044038G 56 42 0,74 1.63 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable coolant-style locknuts and coolant disks are available and must be ordered separately; see page J9. Stop screw coolant caps are available and must be ordered separately; see page J22. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. WWW.WIDIA.COM A297
