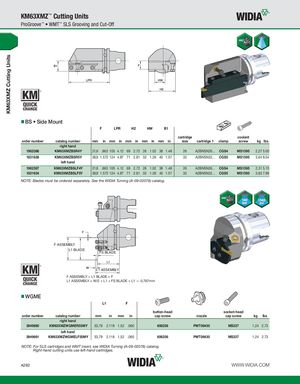

KM63XMZ Cutting Units KM63XMZ™ Cutting Units ProGroove™ • WMT™ SLS Grooving and Cut-Off BS • Side Mount F LPR H2 HW B1 cartridge coolant order number catalog number mm in mm in mm in mm in mm in size cartridge 1 clamp screw kg lbs right hand 1982386 KM63XMZBSR4Y 21,9 .863 105 4.12 69 2.72 26 1.02 38 1.48 26 A2BNSN26... CGS4 MS1595 2,27 5.00 1831638 KM63XMZBSR5Y 39,9 1.572 124 4.87 71 2.81 32 1.26 40 1.57 32 A2BNSN32... CGS5 MS1595 3,64 8.04 left hand 1982387 KM63XMZBSLF4Y 21,9 .863 105 4.12 69 2.72 26 1.02 38 1.48 26 A2BNSN26... CGS4 MS1595 2,31 5.10 1831634 KM63XMZBSLF5Y 39,9 1.572 124 4.87 71 2.81 32 1.26 40 1.57 32 A2BNSN32... CGS5 MS1595 3,63 7.99 NOTE: Blades must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. F ASSEMBLY L1 BLADE FS BLADE L1 ASSEMBLY F ASSEMBLY = L1 BLADE + F L1 ASSEMBLY = W/2 + L1 + FS BLADE + L1 — 0,787mm WGME L1 F button-head socket-head order number catalog number mm in mm in cap screw nozzle cap screw kg lbs right hand 3949660 KM63XMZWGMER55MY 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,24 2.73 left hand 3949661 KM63XMZWGMELF55MY 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,24 2.73 NOTE: For SLS cartridges and WMT insert, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. A282 WWW.WIDIA.COM
