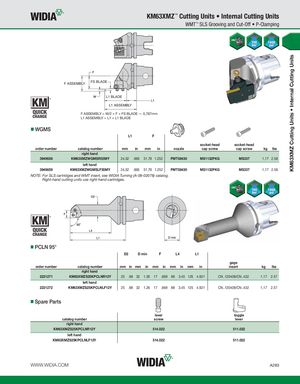

KM63XMZ Cutting Units • Internal Cutting Units KM63XMZ™ Cutting Units • Internal Cutting Units WMT™ SLS Grooving and Cut-Off • P-Clamping F ASSEMBLY FS BLADE L1 BLADE L1 ASSEMBLY F ASSEMBLY = W/2 + F + FS BLADE — 0,787mm L1 ASSEMBLY = L1 + L1 BLADE WGMS L1 F socket-head socket-head order number catalog number mm in mm in nozzle cap screw cap screw kg lbs right hand 3949658 KM63XMZWGMSR55MY 24,52 .965 31,79 1.252 PMT08430 MS1132PKG MS337 1,17 2.58 left hand 3949659 KM63XMZWGMSLF55MY 24,52 .965 31,79 1.252 PMT08430 MS1132PKG MS337 1,17 2.58 NOTE: For SLS cartridges and WMT insert, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. PCLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2231271 KM63XMZS25KPCLNR12Y 25 .98 32 1.26 17 .669 88 3.45 125 4.921 CN..120408/CN..432 1,17 2.57 left hand 2231272 KM63XMZS25KPCLNLF12Y 25 .98 32 1.26 17 .669 88 3.45 125 4.921 CN..120408/CN..432 1,17 2.57 Spare Parts lever toggle catalog number screw lever right hand KM63XMZS25KPCLNR12Y 514.022 511.022 left hand KM63XMZS25KPCLNLF12Y 514.022 511.022 WWW.WIDIA.COM A283
