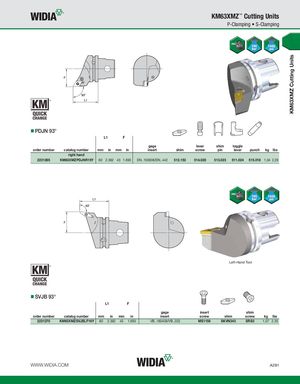

KM63XMZ Cutting Units KM63XMZ™ Cutting Units P-Clamping • S-Clamping PDJN 93° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2231265 KM63XMZPDJNR15Y 60 2.362 43 1.693 DN..150608/DN..442 512.153 514.028 513.023 511.024 515.018 1,04 2.29 Left-Hand Tool SVJB 93° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs 2231270 KM63XMZSVJBLF16Y 60 2.362 43 1.693 VB..160408/VB..332 MS1156 SKVN343 SRS3 1,07 2.35 WWW.WIDIA.COM A281
