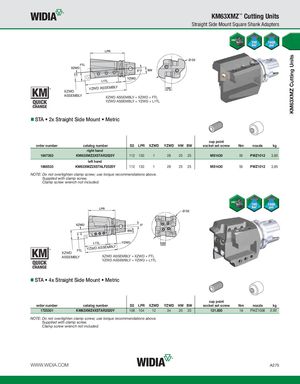

KM63XMZ Cutting Units KM63XMZ™ Cutting Units Straight Side Mount Square Shank Adapters YZWD ASSEMBLY XZWD ASSEMBLY XZWD ASSEMBLY = XZWD + FTL YZWD ASSEMBLY = YZWD + L1TL STA • 2x Straight Side Mount • Metric cup point order number catalog number D2 LPR XZWD YZWD HW BW socket set screw Nm nozzle kg right hand 1847363 KM63XMZ2XSTAR2525Y 112 130 1 28 25 25 MS1430 55 PWZ1012 3,85 left hand 1868533 KM63XMZ2XSTALF2525Y 112 130 1 28 25 25 MS1430 55 PWZ1012 3,85 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. YZWD ASSEMBLY XZWD ASSEMBLY XZWD ASSEMBLY = XZWD + FTL YZWD ASSEMBLY = YZWD + L1TL STA • 4x Straight Side Mount • Metric cup point order number catalog number D2 LPR XZWD YZWD HW BW socket set screw Nm nozzle kg 1725301 KM63XMZ4XSTAR2020Y 108 104 12 34 20 20 121.830 18 PWZ1008 2,92 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. WWW.WIDIA.COM A275
