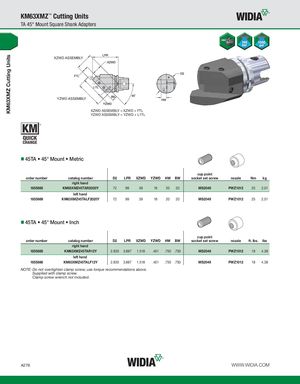

KM63XMZ Cutting Units KM63XMZ™ Cutting Units TA 45° Mount Square Shank Adapters XZWD ASSEMBLY YZWD ASSEMBLY XZWD ASSEMBLY = XZWD + FTL YZWD ASSEMBLY = YZWD + L1TL 45TA • 45° Mount • Metric cup point order number catalog number D2 LPR XZWD YZWD HW BW socket set screw nozzle Nm kg right hand 1855665 KM63XMZ45TAR2020Y 72 99 39 16 20 20 MS2049 PWZ1012 25 2,01 left hand 1855669 KM63XMZ45TALF2020Y 72 99 39 16 20 20 MS2049 PWZ1012 25 2,01 45TA • 45° Mount • Inch cup point order number catalog number D2 LPR XZWD YZWD HW BW socket set screw nozzle ft. lbs. lbs right hand 1855685 KM63XMZ45TAR12Y 2.835 3.887 1.518 .451 .750 .750 MS2049 PWZ1012 18 4.38 left hand 1855686 KM63XMZ45TALF12Y 2.835 3.887 1.518 .451 .750 .750 MS2049 PWZ1012 18 4.38 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. A276 WWW.WIDIA.COM
