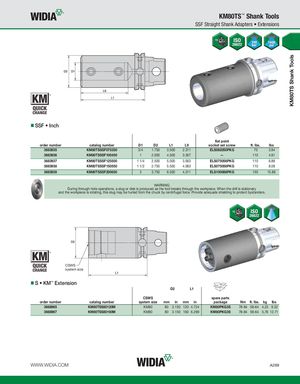

KM80TS Shank Tools KM80TS™ Shank Tools SSF Straight Shank Adapters • Extensions SSF • Inch flat point order number catalog number D1 D2 L1 L9 socket set screw ft. lbs. lbs 3683935 KM80TSSSF075350 3/4 1.750 3.500 2.311 ELS062050PKG 70 3.94 3683936 KM80TSSSF100450 1 2.000 4.500 3.307 — 110 4.91 3683937 KM80TSSSF125500 1 1/4 2.500 5.000 3.563 ELS075056PKG 110 6.88 3683938 KM80TSSSF150550 1 1/2 2.750 5.500 4.063 ELS075056PKG 110 8.08 3683939 KM80TSSSF200650 2 3.750 6.500 4.311 ELS100088PKG 150 15.88 WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. CSWS system size S • KM™ Extension D2 L1 CSWS spare parts order number catalog number system size mm in mm in package Nm ft. lbs. kg lbs 3668965 KM80TSS80120M KM80 80 3.150 120 4.724 KM80PKG3S 78-84 58-64 4,23 9.32 3668967 KM80TSS80160M KM80 80 3.150 160 6.299 KM80PKG3S 78-84 58-64 5,76 12.71 WWW.WIDIA.COM A269
