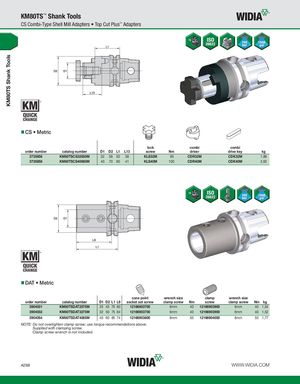

KM80TS Shank Tools KM80TS™ Shank Tools CS Combi-Type Shell Mill Adapters • Top Cut Plus™ Adapters CS • Metric lock combi combi order number catalog number D1 D2 L1 L13 screw Nm driver drive key kg 3735656 KM80TSCS32050M 32 58 50 38 KLS32M 95 CDR32M CDK32M 1,89 3735658 KM80TSCS40060M 40 70 60 41 KLS40M 100 CDR40M CDK40M 2,62 DAT • Metric cone point wrench size clamp wrench size order number catalog number D1 D2 L1 L9 socket set screw clamp screw Nm screw clamp screw Nm kg 3904031 KM80TSDAT2575M 25 45 75 60 12166903700 6mm 40 12166903900 6mm 40 1,54 3904032 KM80TSDAT3275M 32 50 75 64 12166903700 6mm 40 12166903900 6mm 40 1,52 3904054 KM80TSDAT4085M 40 60 85 74 12166903800 8mm 50 12166904000 8mm 50 1,77 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamping screw. Clamp screw wrench is not included. A268 WWW.WIDIA.COM
