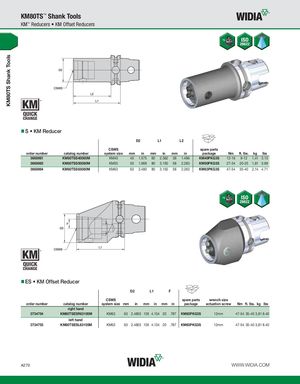

KM80TS Shank Tools KM80TS™ Shank Tools KM™ Reducers • KM Offset Reducers S • KM Reducer D2 L1 L2 CSWS spare parts order number catalog number system size mm in mm in mm in package Nm ft. lbs. kg lbs 3668961 KM80TSS40060M KM40 40 1.575 60 2.362 38 1.496 KM40PKG3S 12-16 9-12 1,41 3.10 3668963 KM80TSS50080M KM50 50 1.969 80 3.150 58 2.283 KM50PKG3S 27-34 20-25 1,81 3.99 3668964 KM80TSS63080M KM63 63 2.480 80 3.150 58 2.283 KM63PKG3S 47-54 35-40 2,14 4.71 ES • KM Offset Reducer D2 L1 F CSWS spare parts wrench size order number catalog number system size mm in mm in mm in package actuation screw Nm ft. lbs. kg lbs right hand 3734754 KM80TSESR63105M KM63 63 2.4803 105 4.134 20 .787 KM63PKG3S 12mm 47-54 35-40 3,81 8.40 left hand 3734753 KM80TSESL63105M KM63 63 2.4803 105 4.134 20 .787 KM63PKG3S 12mm 47-54 35-40 3,81 8.40 A270 WWW.WIDIA.COM
