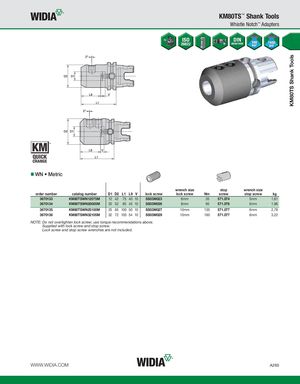

KM80TS Shank Tools KM80TS™ Shank Tools Whistle Notch™ Adapters WN • Metric wrench size stop wrench size order number catalog number D1 D2 L1 L9 V lock screw lock screw Nm screw stop screw kg 3670133 KM80TSWN12075M 12 42 75 40 10 SS03M023 6mm 35 571.074 5mm 1,61 3670134 KM80TSWN20085M 20 52 85 45 10 SS03M026 8mm 95 571.076 6mm 1,96 3670135 KM80TSWN25100M 25 65 100 50 10 SS03M027 10mm 135 571.077 6mm 2,78 3670136 KM80TSWN32105M 32 72 105 54 10 SS03M029 10mm 160 571.077 6mm 3,22 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. WWW.WIDIA.COM A265
