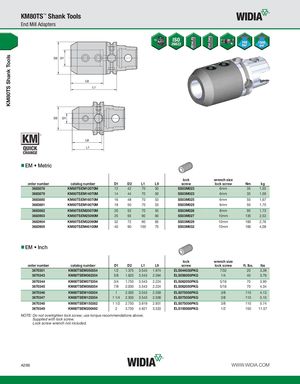

KM80TS Shank Tools KM80TS™ Shank Tools End Mill Adapters EM • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 3683878 KM80TSEM12070M 12 42 70 50 SS03M023 6mm 35 1,55 3683879 KM80TSEM14070M 14 44 70 50 SS03M023 6mm 35 1,59 3683880 KM80TSEM16070M 16 48 70 53 SS03M025 6mm 50 1,67 3683881 KM80TSEM18070M 18 50 70 53 SS03M025 6mm 50 1,70 3683882 KM80TSEM20070M 20 52 70 55 SS03M026 8mm 95 1,73 3683903 KM80TSEM25090M 25 65 90 60 SS03M027 10mm 135 2,53 3683904 KM80TSEM32090M 32 72 90 65 SS03M029 10mm 160 2,76 3683905 KM80TSEM40100M 40 90 100 75 SS03M032 10mm 160 4,09 EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 3670301 KM80TSEM050354 1/2 1.375 3.543 1.974 ELS044038PKG 7/32 20 3.39 3670343 KM80TSEM062354 5/8 1.625 3.543 2.094 ELS056050PKG 1/4 40 3.76 3670344 KM80TSEM075354 3/4 1.750 3.543 2.224 ELS062050PKG 5/16 70 3.90 3670345 KM80TSEM088354 7/8 2.000 3.543 2.224 ELS062050PKG 5/16 70 4.34 3670346 KM80TSEM100354 1 2.000 3.543 2.559 ELS075056PKG 3/8 110 4.13 3670347 KM80TSEM125354 1 1/4 2.500 3.543 2.509 ELS075056PKG 3/8 110 5.10 3670348 KM80TSEM150382 1 1/2 2.750 3.819 2.931 ELS075056PKG 3/8 110 5.74 3670349 KM80TSEM200492 2 3.750 4.921 3.533 ELS100088PKG 1/2 150 11.57 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. A266 WWW.WIDIA.COM
