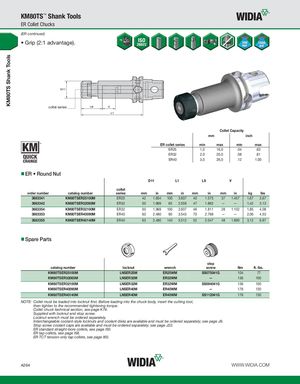

KM80TS Shank Tools KM80TS™ Shank Tools ER Collet Chucks (ER continued) • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER • Round Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3683341 KM80TSER25100M ER25 42 1.654 100 3.937 40 1.575 37 1.457 1,67 3.67 3683342 KM80TSER32065M ER32 50 1.969 65 2.559 47 1.862 — — 1,42 3.13 3683354 KM80TSER32100M ER32 50 1.969 100 3.937 46 1.811 28 1.102 1,85 4.08 3683353 KM80TSER40090M ER40 63 2.480 90 3.543 70 2.768 — — 2,06 4.53 3683355 KM80TSER40140M ER40 63 2.480 140 5.512 52 2.047 48 1.890 3,12 6.87 Spare Parts stop catalog number locknut wrench screw Nm ft. lbs. KM80TSER25100M LNSER25M ER25WM SS075041G 104 77 KM80TSER32065M LNSER32M ER32WM — 136 100 KM80TSER32100M LNSER32M ER32WM SS094041G 136 100 KM80TSER40090M LNSER40M ER40WM — 176 130 KM80TSER40140M LNSER40M ER40WM SS112041G 176 130 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable coolant-style locknuts and coolant disks are available and must be ordered separately; see page J9. Stop screw coolant caps are available and must be ordered separately; see page J22. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. A264 WWW.WIDIA.COM
