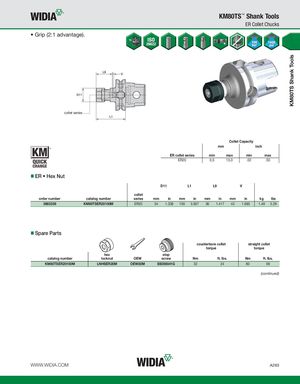

KM80TS Shank Tools KM80TS™ Shank Tools ER Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER20 0,5 13,0 .02 .50 ER • Hex Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3683339 KM80TSER20100M ER20 34 1.339 100 3.937 36 1.417 43 1.693 1,49 3.29 Spare Parts counterbore collet straight collet torque torque hex stop catalog number locknut OEW screw Nm ft. lbs. Nm ft. lbs. KM80TSER20100M LNHSER20M OEW30M SS056041G 32 24 80 59 (continued) WWW.WIDIA.COM A263
