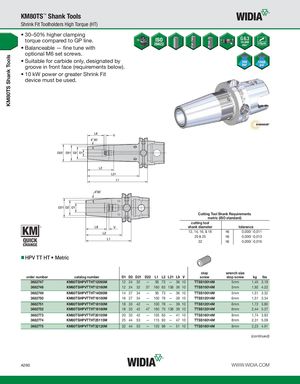

KM80TS Shank Tools KM80TS™ Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/ -0,011 20 & 25 h6 0,000/ -0,013 32 h6 0,000/ -0,016 HPV TT HT • Metric stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg lbs 3682747 KM80TSHPVTTHT12095M 12 24 32 — 95 73 — 36 10 TTSS10014M 5mm 1,45 3.19 3682748 KM80TSHPVTTHT12160M 12 24 32 37 160 63 138 36 10 TTSS10014M 5mm 1,92 4.22 3682749 KM80TSHPVTTHT14095M 14 27 34 — 95 73 — 36 10 TTSS10014M 5mm 1,51 3.32 3682750 KM80TSHPVTTHT16100M 16 27 34 — 100 78 — 39 10 TTSS12014M 6mm 1,51 3.34 3682751 KM80TSHPVTTHT18100M 18 33 42 — 100 78 — 39 10 TTSS12014M 6mm 1,72 3.80 3682752 KM80TSHPVTTHT18160M 18 33 42 47 160 70 138 39 10 TTSS12014M 6mm 2,44 5.37 3682773 KM80TSHPVTTHT20105M 20 33 42 — 105 83 — 41 10 TTSS16014M 8mm 1,74 3.83 3682774 KM80TSHPVTTHT25115M 25 44 53 — 115 93 — 47 10 TTSS16014M 8mm 2,31 5.09 3682775 KM80TSHPVTTHT32120M 32 44 53 — 120 98 — 51 10 TTSS16014M 8mm 2,23 4.91 (continued) A260 WWW.WIDIA.COM
