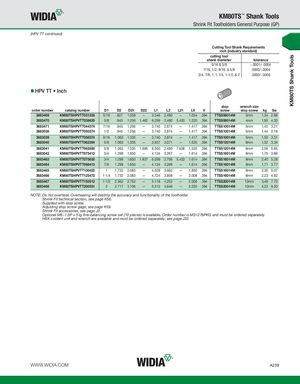

KM80TS Shank Tools KM80TS™ Shank Tools Shrink Fit Toolholders General Purpose (GP) (HPV TT continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameter tolerance 5/16 & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, & 5/8 .0000/-.0004 3/4, 7/8, 1, 1-1/4, 1-1/2, & 2 .0000/-.0005 HPV TT • Inch stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg lbs 3683469 KM80TSHPVTT031335 5/16 .827 1.059 — 3.346 2.480 — 1.024 .394 TTSS06014M 3mm 1,34 2.96 3683470 KM80TSHPVTT038630 3/8 .945 1.256 1.462 6.299 2.480 5.433 1.220 .394 TTSS08014M 4mm 1,95 4.30 3683471 KM80TSHPVTT044374 7/16 .945 1.256 — 3.740 2.874 — 1.417 .394 TTSS10014M 5mm 1,45 3.21 3683038 KM80TSHPVTT050374 1/2 .945 1.256 — 3.740 2.874 — 1.417 .394 TTSS10014M 5mm 1,44 3.18 3683039 KM80TSHPVTT056374 9/16 1.063 1.335 — 3.740 2.874 — 1.417 .394 TTSS10014M 5mm 1,50 3.31 3683040 KM80TSHPVTT062394 5/8 1.063 1.335 — 3.937 3.071 — 1.535 .394 TTSS12014M 6mm 1,52 3.34 3683041 KM80TSHPVTT062850 5/8 1.063 1.335 1.695 8.500 2.480 7.638 1.535 .394 TTSS12014M 6mm 2,56 5.65 3683042 KM80TSHPVTT075413 3/4 1.299 1.650 — 4.134 3.267 — 1.614 .394 TTSS16014M 8mm 1,75 3.86 3683463 KM80TSHPVTT075630 3/4 1.299 1.650 1.837 6.299 2.756 5.433 1.614 .394 TTSS16014M 8mm 2,40 5.28 3683464 KM80TSHPVTT088413 7/8 1.299 1.650 — 4.134 3.268 — 1.614 .394 TTSS16014M 8mm 1,71 3.77 3683465 KM80TSHPVTT100453 1 1.732 2.083 — 4.528 3.662 — 1.850 .394 TTSS16014M 8mm 2,30 5.07 3683466 KM80TSHPVTT125472 1 1/4 1.732 2.083 — 4.724 3.858 — 2.008 .394 TTSS16014M 8mm 2,23 4.92 3683467 KM80TSHPVTT150512 1 1/2 2.362 2.752 — 5.118 4.252 — 2.008 .394 TTSS20014M 10mm 3,49 7.70 3683468 KM80TSHPVTT200551 2 2.717 3.106 — 5.512 4.646 — 2.205 .394 TTSS20014M 10mm 4,22 9.30 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM A259
