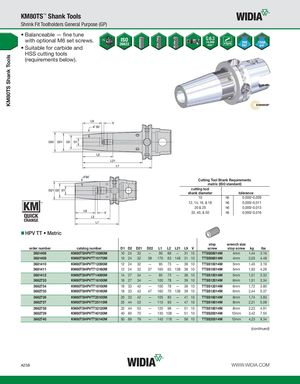

KM80TS Shank Tools KM80TS™ Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 HPV TT • Metric stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg lbs 3681408 KM80TSHPVTT10090M 10 24 32 — 90 68 — 31 10 TTSS08014M 4mm 1,44 3.16 3681409 KM80TSHPVTT10170M 10 24 32 38 170 63 148 31 10 TTSS08014M 4mm 2,03 4.48 3681410 KM80TSHPVTT12095M 12 24 32 — 95 73 — 36 10 TTSS10014M 5mm 1,45 3.19 3681411 KM80TSHPVTT12160M 12 24 32 37 160 63 138 36 10 TTSS10014M 5mm 1,93 4.26 3681412 KM80TSHPVTT14095M 14 27 34 — 95 73 — 36 10 TTSS10014M 5mm 1,51 3.32 3682733 KM80TSHPVTT16100M 16 27 34 — 100 78 — 39 10 TTSS12014M 6mm 1,51 3.34 3682734 KM80TSHPVTT18100M 18 33 42 — 100 78 — 39 10 TTSS12014M 6mm 1,72 3.80 3682735 KM80TSHPVTT18160M 18 33 42 47 160 70 138 39 10 TTSS12014M 6mm 2,44 5.37 3682736 KM80TSHPVTT20105M 20 33 42 — 105 83 — 41 10 TTSS16014M 8mm 1,74 3.83 3682737 KM80TSHPVTT25115M 25 44 53 — 115 93 — 47 10 TTSS16014M 8mm 2,31 5.09 3682738 KM80TSHPVTT32120M 32 44 53 — 120 98 — 51 10 TTSS16014M 8mm 2,23 4.91 3682739 KM80TSHPVTT40130M 40 60 70 — 130 108 — 51 10 TTSS20014M 10mm 3,42 7.55 3682740 KM80TSHPVTT50140M 50 69 79 — 140 118 — 56 10 TTSS20014M 10mm 4,23 9.34 (continued) A258 WWW.WIDIA.COM
