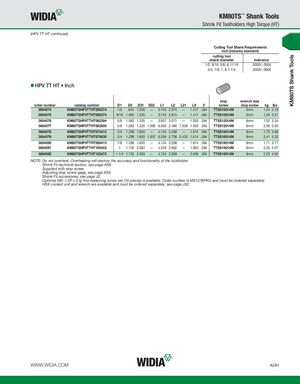

KM80TS Shank Tools KM80TS™ Shank Tools Shrink Fit Toolholders High Torque (HT) (HPV TT HT continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameter tolerance 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 HPV TT HT • Inch stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg lbs 3684074 KM80TSHPVTTHT050374 1/2 .945 1.256 — 3.740 2.874 — 1.417 .394 TTSS10014M 5mm 1,44 3.18 3684075 KM80TSHPVTTHT056374 9/16 1.063 1.335 — 3.740 2.874 — 1.417 .394 TTSS10014M 5mm 1,50 3.31 3684076 KM80TSHPVTTHT062394 5/8 1.063 1.335 — 3.937 3.071 — 1.535 .394 TTSS12014M 6mm 1,52 3.34 3684077 KM80TSHPVTTHT062850 5/8 1.063 1.335 1.695 8.500 2.480 7.638 1.535 .394 TTSS12014M 6mm 2,56 5.65 3684078 KM80TSHPVTTHT075413 3/4 1.299 1.650 — 4.134 3.268 — 1.614 .394 TTSS16014M 8mm 1,75 3.86 3684079 KM80TSHPVTTHT075630 3/4 1.299 1.650 1.837 6.299 2.756 5.433 1.614 .394 TTSS16014M 8mm 2,41 5.32 3684080 KM80TSHPVTTHT088413 7/8 1.299 1.650 — 4.134 3.268 — 1.614 .394 TTSS16014M 8mm 1,71 3.77 3684081 KM80TSHPVTTHT100453 1 1.732 2.083 — 4.528 3.662 — 1.850 .394 TTSS16014M 8mm 2,30 5.07 3684082 KM80TSHPVTTHT125472 1 1/4 1.732 2.083 — 4.724 3.858 — 2.008 .394 TTSS16014M 8mm 2,23 4.92 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM A261
