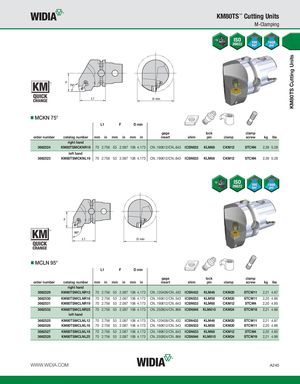

KM80TS Cutting Units KM80TS™ Cutting Units M-Clamping MCKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3662524 KM80TSMCKNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,39 5.28 left hand 3662523 KM80TSMCKNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,39 5.28 MCLN 95° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3662529 KM80TSMCLNR12 70 2.756 53 2.087 106 4.173 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 2,21 4.87 3662530 KM80TSMCLNR16 70 2.756 53 2.087 106 4.173 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,20 4.86 3662531 KM80TSMCLNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,20 4.85 3662532 KM80TSMCLNR25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,21 4.86 left hand 3662525 KM80TSMCLNL12 70 2.756 53 2.087 106 4.173 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 2,21 4.87 3662526 KM80TSMCLNL16 70 2.756 53 2.087 106 4.173 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,20 4.86 3662527 KM80TSMCLNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,20 4.85 3662528 KM80TSMCLNL25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,21 4.86 WWW.WIDIA.COM A245
