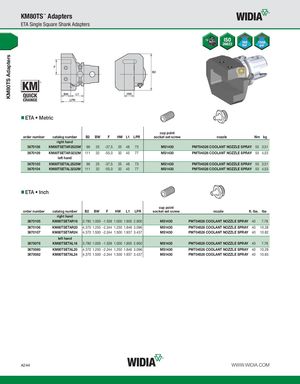

KM80TS Adapters KM80TS™ Adapters ETA Single Square Shank Adapters ETA • Metric cup point order number catalog number B2 BW F HW L1 LPR socket set screw nozzle Nm kg right hand 3670108 KM80TSETAR2525M 96 25 -37,5 25 48 73 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,51 3670109 KM80TSETAR3232M 111 32 -55,0 32 45 77 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 4,53 left hand 3670103 KM80TSETAL2525M 96 25 -37,5 25 48 73 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,51 3670104 KM80TSETAL3232M 111 32 -55,0 32 45 77 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 4,53 ETA • Inch cup point order number catalog number B2 BW F HW L1 LPR socket set screw nozzle ft. lbs. lbs right hand 3670105 KM80TSETAR16 3.780 1.000 -1.539 1.000 1.900 2.900 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.78 3670106 KM80TSETAR20 4.370 1.250 -2.244 1.250 1.846 3.096 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.28 3670107 KM80TSETAR24 4.370 1.500 -2.244 1.500 1.937 3.437 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.82 left hand 3670078 KM80TSETAL16 3.780 1.000 -1.539 1.000 1.900 2.900 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.78 3670080 KM80TSETAL20 4.370 1.250 -2.244 1.250 1.846 3.096 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.28 3670082 KM80TSETAL24 4.370 1.500 -2.244 1.500 1.937 3.437 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.83 A244 WWW.WIDIA.COM
