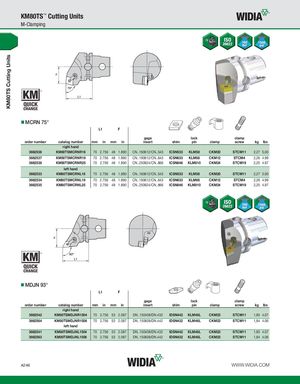

KM80TS Cutting Units KM80TS™ Cutting Units M-Clamping MCRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3662536 KM80TSMCRNR16 70 2.756 48 1.890 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,27 5.00 3662537 KM80TSMCRNR19 70 2.756 48 1.890 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,26 4.99 3662538 KM80TSMCRNR25 70 2.756 48 1.890 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,25 4.97 left hand 3662533 KM80TSMCRNL16 70 2.756 48 1.890 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,27 5.00 3662534 KM80TSMCRNL19 70 2.756 48 1.890 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,26 4.99 3662535 KM80TSMCRNL25 70 2.756 48 1.890 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,25 4.97 MDJN 93° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3662542 KM80TSMDJNR1504 70 2.756 53 2.087 DN..150408/DN.432 IDSN442 KLM46L CKM23 STCM11 1,85 4.07 3662564 KM80TSMDJNR1506 70 2.756 53 2.087 DN..150608/DN.442 IDSN432 KLM46L CKM23 STCM11 1,84 4.06 left hand 3662541 KM80TSMDJNL1504 70 2.756 53 2.087 DN..150408/DN.432 IDSN442 KLM46L CKM23 STCM11 1,85 4.07 3662563 KM80TSMDJNL1506 70 2.756 53 2.087 DN..150608/DN.442 IDSN432 KLM46L CKM23 STCM11 1,84 4.06 A246 WWW.WIDIA.COM
