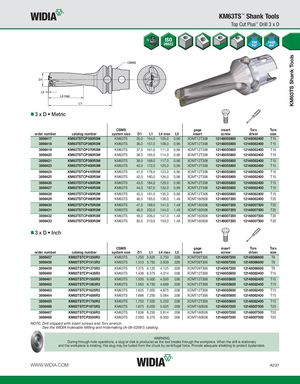

KM63TS Shank Tools KM63TS™ Shank Tools Top Cut Plus™ Drill 3 x D 3 x D • Metric CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898417 KM63TSTCP350R3M KM63TS 35,0 154,0 105,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898418 KM63TSTCP360R3M KM63TS 36,0 157,0 108,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898419 KM63TSTCP370R3M KM63TS 37,0 161,0 111,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898420 KM63TSTCP380R3M KM63TS 38,0 165,0 114,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898421 KM63TSTCP390R3M KM63TS 39,0 169,0 117,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898423 KM63TSTCP400R3M KM63TS 40,0 172,0 120,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898424 KM63TSTCP410R3M KM63TS 41,0 176,0 123,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898425 KM63TSTCP420R3M KM63TS 42,0 180,0 126,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898426 KM63TSTCP430R3M KM63TS 43,0 184,0 129,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898427 KM63TSTCP440R3M KM63TS 44,0 187,0 132,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898428 KM63TSTCP450R3M KM63TS 45,0 191,0 135,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898429 KM63TSTCP460R3M KM63TS 46,0 195,0 138,0 1,48 XOMT160508 12148007200 12148082400 T20 3898430 KM63TSTCP470R3M KM63TS 47,0 199,0 141,0 1,48 XOMT160508 12148007200 12148007500 T20 3898431 KM63TSTCP480R3M KM63TS 48,0 202,0 144,0 1,48 XOMT160508 12148007200 12148007500 T20 3898432 KM63TSTCP490R3M KM63TS 49,0 206,0 147,0 1,48 XOMT160508 12148007200 12148007500 T20 3898433 KM63TSTCP500R3M KM63TS 50,0 210,0 150,0 1,48 XOMT160508 12148007200 12148007500 T20 3 x D • Inch CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898457 KM63TSTCP1250R3 KM63TS 1.250 5.625 3.750 .028 XOMT09T306 12148067200 12148086600 T8 3898458 KM63TSTCP1313R3 KM63TS 1.313 5.750 3.939 .028 XOMT09T306 12148067200 12148086600 T8 3898459 KM63TSTCP1375R3 KM63TS 1.375 6.125 4.125 .028 XOMT09T306 12148067200 12148086600 T8 3898460 KM63TSTCP1438R3 KM63TS 1.438 6.375 4.314 .038 XOMT12T308 12148055800 12148082400 T15 3898461 KM63TSTCP1500R3 KM63TS 1.500 6.500 4.500 .038 XOMT12T308 12148055800 12148082400 T15 3898462 KM63TSTCP1563R3 KM63TS 1.563 6.750 4.689 .038 XOMT12T308 12148055800 12148082400 T15 3898463 KM63TSTCP1625R3 KM63TS 1.625 7.000 4.875 .038 XOMT12T308 12148055800 12148082400 T15 3898464 KM63TSTCP1688R3 KM63TS 1.688 7.250 5.064 .038 XOMT12T308 12148055800 12148082400 T15 3898465 KM63TSTCP1750R3 KM63TS 1.750 7.500 5.250 .038 XOMT12T308 12148055800 12148082400 T15 3898466 KM63TSTCP1875R3 KM63TS 1.875 8.000 5.625 .058 XOMT160508 12148007200 12148007500 T20 3898467 KM63TSTCP1938R3 KM63TS 1.938 8.250 5.814 .058 XOMT160508 12148007200 12148007500 T20 3898468 KM63TSTCP2000R3 KM63TS 2.000 8.375 6.000 .058 XOMT160508 12148007200 12148007500 T20 NOTE: Drill shipped with insert screws and Torx wrench. See the WIDIA Indexable Milling and Holemaking (A-09-02081) catalog. WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. WWW.WIDIA.COM A237
