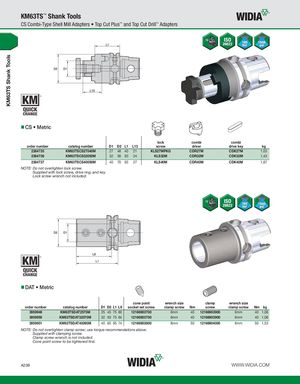

KM63TS Shank Tools KM63TS™ Shank Tools CS Combi-Type Shell Mill Adapters • Top Cut Plus™ and Top Cut Drill™ Adapters CS • Metric lock combi combi order number catalog number D1 D2 L1 L13 screw driver drive key kg 2384735 KM63TSCS27040M 27 48 40 21 KLS27MPKG CDR27M CDK27M 1,03 2384736 KM63TSCS32050M 32 58 50 24 KLS32M CDR32M CDK32M 1,43 2384737 KM63TSCS40050M 40 70 50 27 KLS40M CDR40M CDK40M 1,87 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and key. Lock screw wrench not included. DAT • Metric cone point wrench size clamp wrench size order number catalog number D1 D2 L1 L9 socket set screw clamp screw Nm screw clamp screw Nm kg 3959949 KM63TSDAT2575M 25 45 75 60 12166903700 6mm 40 12166903900 6mm 40 1,06 3959950 KM63TSDAT32075M 32 50 75 64 12166903700 6mm 40 12166903900 6mm 40 1,06 3959951 KM63TSDAT40095M 40 60 95 74 12166903800 8mm 50 12166904000 8mm 50 1,53 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamping screw. Clamp screw wrench is not included. Cone point screw to be tightened first. A236 WWW.WIDIA.COM
