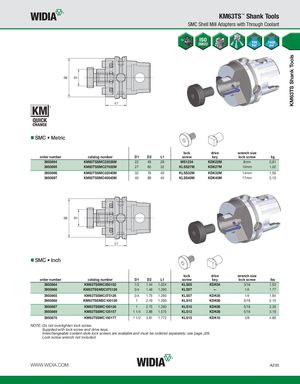

KM63TS Shank Tools KM63TS™ Shank Tools SMC Shell Mill Adapters with Through Coolant SMC • Metric lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3950894 KM63TSSMC22028M 22 49 28 MS1234 KDK22M 8mm 0,81 3950895 KM63TSSMC27032M 27 60 32 KLSS27M KDK27M 10mm 1,02 3950896 KM63TSSMC32040M 32 78 40 KLSS32M KDK32M 14mm 1,56 3950897 KM63TSSMC40045M 40 89 45 KLSS40M KDK40M 17mm 2,10 SMC • Inch lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw lbs 3950864 KM63TSSMC050102 1/2 1.44 1.024 KLS05 KDK04 3/16 1.53 3950866 KM63TSSM2C075126 3/4 1.46 1.260 KLS07 — 1/4 1.77 3950865 KM63TSSMC075126 3/4 1.75 1.260 KLS07 KDK05 1/4 1.84 3950868 KM63TSSM2C100126 1 2.19 1.260 KLS10 KDK06 5/16 2.10 3950867 KM63TSSMC100126 1 2.75 1.260 KLS10 KDK06 5/16 2.35 3950869 KM63TSSMC125157 1 1/4 2.88 1.575 KLS12 KDK08 5/16 3.19 3950870 KM63TSSMC150177 1 1/2 3.81 1.772 KLS15 KDK10 3/8 4.86 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. WWW.WIDIA.COM A235
