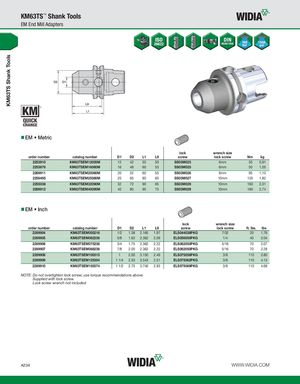

KM63TS Shank Tools KM63TS™ Shank Tools EM End Mill Adapters EM • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 2253910 KM63TSEM12055M 12 42 55 50 SS03M023 6mm 35 0,91 2253676 KM63TSEM16060M 16 48 60 53 SS03M025 6mm 50 1,05 2269911 KM63TSEM20060M 20 52 60 55 SS03M026 8mm 95 1,10 2258495 KM63TSEM25080M 25 65 80 60 SS03M027 10mm 135 1,82 2255038 KM63TSEM32090M 32 72 90 65 SS03M029 10mm 160 2,31 2269912 KM63TSEM40095M 40 80 95 75 SS03M029 10mm 160 2,74 EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 2269904 KM63TSEM050216 1/2 1.38 2.165 1.97 ELS044038PKG 7/32 20 1.76 2269905 KM63TSEM062236 5/8 1.63 2.362 2.09 ELS056050PKG 1/4 40 2.04 2269906 KM63TSEM075236 3/4 1.75 2.362 2.22 ELS062050PKG 5/16 70 2.07 2269907 KM63TSEM088236 7/8 2.00 2.362 2.22 ELS062050PKG 5/16 70 2.28 2269908 KM63TSEM100315 1 2.00 3.150 2.46 ELS075056PKG 3/8 110 2.80 2269909 KM63TSEM125354 1 1/4 2.50 3.543 2.51 ELS075062PKG 3/8 110 4.13 2269910 KM63TSEM150374 1 1/2 2.75 3.740 2.93 ELS075069PKG 3/8 110 4.68 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. A234 WWW.WIDIA.COM
