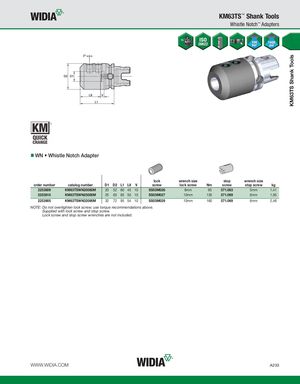

KM63TS Shank Tools KM63TS™ Shank Tools Whistle Notch™ Adapters WN • Whistle Notch Adapter lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 2253809 KM63TSWN20080M 20 52 80 45 10 SS03M026 8mm 95 571.063 5mm 1,41 2253810 KM63TSWN25085M 25 65 85 50 10 SS03M027 10mm 135 571.069 6mm 1,95 2253905 KM63TSWN32095M 32 72 95 54 10 SS03M029 10mm 160 571.069 6mm 2,46 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. WWW.WIDIA.COM A233
