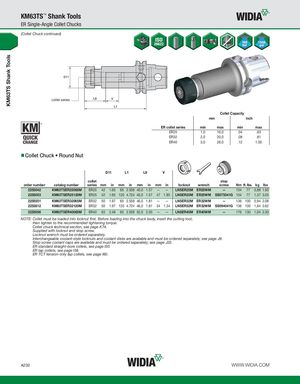

KM63TS Shank Tools KM63TS™ Shank Tools ER Single-Angle Collet Chucks (Collet Chuck continued) collet series Collet Capacity mm inch ER collet series min max min max ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 Collet Chuck • Round Nut D11 L1 L9 V collet stop order number catalog number series mm in mm in mm in mm in locknut wrench screw Nm ft. lbs. kg lbs 2255042 KM63TSER25065M ER25 42 1.65 65 2.559 40,0 1.57 — — LNSER25M ER25WM — 104 77 0,88 1.93 2255053 KM63TSER25120M ER25 42 1.65 120 4.724 40,0 1.57 47 1.85 LNSER25M ER25WM SS075041G 104 77 1,37 3.03 2255551 KM63TSER32065M ER32 50 1.97 65 2.559 46,0 1.81 — — LNSER32M ER32WM — 136 100 0,94 2.08 2253812 KM63TSER32120M ER32 50 1.97 120 4.724 46,0 1.81 34 1.34 LNSER32M ER32WM SS094041G 136 100 1,64 3.62 2255056 KM63TSER40065M ER40 63 2.48 65 2.559 52,0 2.05 — — LNSER40M ER40WM — 176 130 1,04 2.30 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable coolant-style locknuts and coolant disks are available and must be ordered separately; see page J9. Stop screw coolant caps are available and must be ordered separately; see page J22. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. A232 WWW.WIDIA.COM
