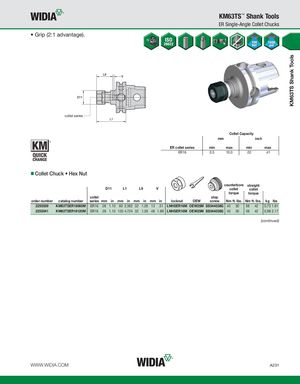

KM63TS Shank Tools KM63TS™ Shank Tools ER Single-Angle Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 Collet Chuck • Hex Nut counterbore straight D11 L1 L9 V collet collet torque torque collet stop order number catalog number series mm in mm in mm in mm in locknut OEW screw Nm ft. lbs. Nm ft. lbs. kg lbs 2255039 KM63TSER16060M ER16 28 1.10 60 2.362 32 1.26 13 .51 LNHSER16M OEW25M SS044038G 40 30 56 42 0,73 1.61 2255041 KM63TSER16120M ER16 28 1.10 120 4.724 32 1.26 48 1.89 LNHSER16M OEW25M SS044038G 40 30 56 42 0,98 2.17 (continued) WWW.WIDIA.COM A231
