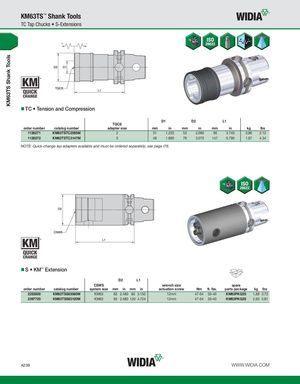

KM63TS Shank Tools KM63TS™ Shank Tools TC Tap Chucks • S-Extensions TC • Tension and Compression D1 D2 L1 TQCS order number catalog number adapter size mm in mm in mm in kg lbs 1126271 KM63TSTC2095M 2 31 1.220 53 2.090 95 3.740 0,96 2.12 1126272 KM63TSTC3147M 3 48 1.890 78 3.070 147 5.790 1,97 4.34 NOTE: Quick-change tap adapters available and must be ordered separately; see page I76. S • KM™ Extension D2 L1 CSWS wrench size spare order number catalog number system size mm in mm in actuation screw Nm ft. lbs. parts package kg lbs 2253808 KM63TSS63080M KM63 63 2.480 80 3.150 12mm 47-54 35-40 KM63PKG3S 1,69 3.73 2397720 KM63TSS63120M KM63 63 2.480 120 4.724 12mm 47-54 35-40 KM63PKG3S 2,63 5.81 A238 WWW.WIDIA.COM
