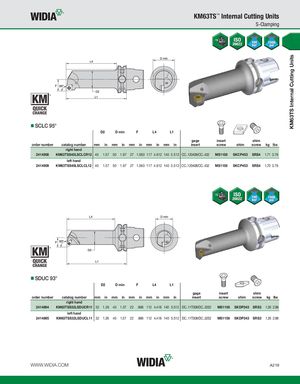

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units S-Clamping SCLC 95° D2 D min F L4 L1 gage insert shim order number catalog number mm in mm in mm in mm in mm in insert screw shim screw kg lbs right hand 2414908 KM63TSS40LSCLCR12 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,71 3.76 left hand 2414909 KM63TSS40LSCLCL12 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,70 3.76 SDUC 93° D2 D min F L4 L1 gage insert shim order number catalog number mm in mm in mm in mm in mm in insert screw shim screw kg lbs right hand 2414894 KM63TSS32LSDUCR11 32 1.26 40 1.57 22 .866 112 4.418 140 5.512 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 1,35 2.98 left hand 2414895 KM63TSS32LSDUCL11 32 1.26 40 1.57 22 .866 112 4.418 140 5.512 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 1,35 2.98 WWW.WIDIA.COM A219
