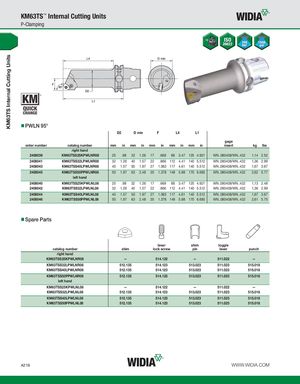

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units P-Clamping PWLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2408039 KM63TSS25KPWLNR08 25 .98 32 1.26 17 .669 88 3.47 125 4.921 WN..080408/WN..432 1,14 2.52 2408041 KM63TSS32LPWLNR08 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 WN..080408/WN..432 1,36 2.99 2408043 KM63TSS40LPWLNR08 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 WN..080408/WN..432 1,67 3.67 2408045 KM63TSS50PPWLNR08 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 WN..080408/WN..432 2,62 5.77 left hand 2408040 KM63TSS25KPWLNL08 25 .98 32 1.26 17 .669 88 3.47 125 4.921 WN..080408/WN..432 1,13 2.48 2408042 KM63TSS32LPWLNL08 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 WN..080408/WN..432 1,36 2.99 2408044 KM63TSS40LPWLNL08 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 WN..080408/WN..432 1,67 3.67 2408046 KM63TSS50PPWLNL08 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 WN..080408/WN..432 2,61 5.75 Spare Parts lever shim toggle catalog number shim lock screw pin lever punch right hand KM63TSS25KPWLNR08 — 514.122 — 511.022 — KM63TSS32LPWLNR08 512.135 514.123 513.023 511.023 515.018 KM63TSS40LPWLNR08 512.135 514.123 513.023 511.023 515.018 KM63TSS50PPWLNR08 512.135 514.123 513.023 511.023 515.018 left hand KM63TSS25KPWLNL08 — 514.122 — 511.022 — KM63TSS32LPWLNL08 512.135 514.123 513.023 511.023 515.018 KM63TSS40LPWLNL08 512.135 514.123 513.023 511.023 515.018 KM63TSS50PPWLNL08 512.135 514.123 513.023 511.023 515.018 A218 WWW.WIDIA.COM
