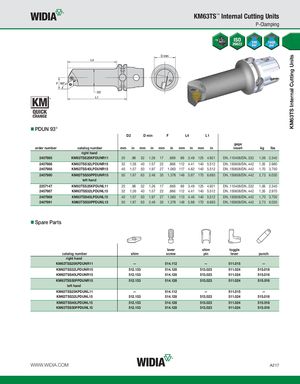

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units P-Clamping PDUN 93° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2407985 KM63TSS25KPDUNR11 25 .98 32 1.26 17 .669 89 3.49 125 4.921 DN..110408/DN..332 1,06 2.340 2407986 KM63TSS32LPDUNR15 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 DN..150608/DN..442 1,35 2.980 2407988 KM63TSS40LPDUNR15 40 1.57 50 1.97 27 1.063 117 4.62 140 5.512 DN..150608/DN..442 1,70 3.750 2407990 KM63TSS50PPDUNR15 50 1.97 63 2.48 35 1.378 149 5.87 170 6.693 DN..150608/DN..442 2,73 6.030 left hand 2257147 KM63TSS25KPDUNL11 25 .98 32 1.26 17 .669 89 3.49 125 4.921 DN..110408/DN..332 1,06 2.340 2407987 KM63TSS32LPDUNL15 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 DN..150608/DN..442 1,35 2.970 2407989 KM63TSS40LPDUNL15 40 1.57 50 1.97 27 1.063 113 4.46 140 5.512 DN..150608/DN..442 1,70 3.750 2407991 KM63TSS50PPDUNL15 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 DN..150608/DN..442 2,73 6.030 Spare Parts lever shim toggle catalog number shim screw pin lever punch right hand KM63TSS25KPDUNR11 — 514.112 — 511.015 — KM63TSS32LPDUNR15 512.153 514.128 513.023 511.024 515.018 KM63TSS40LPDUNR15 512.153 514.128 513.023 511.024 515.018 KM63TSS50PPDUNR15 512.153 514.128 513.023 511.024 515.018 left hand KM63TSS25KPDUNL11 — 514.112 — 511.015 — KM63TSS32LPDUNL15 512.153 514.128 513.023 511.024 515.018 KM63TSS40LPDUNL15 512.153 514.128 513.023 511.024 515.018 KM63TSS50PPDUNL15 512.153 514.128 513.023 511.024 515.018 WWW.WIDIA.COM A217
