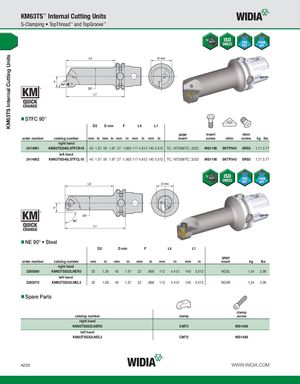

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units S-Clamping • TopThread™ and TopGroove™ STFC 90° D2 D min F L4 L1 gage insert shim order number catalog number mm in mm in mm in mm in mm in insert screw shim screw kg lbs right hand 2414901 KM63TSS40LSTFCR16 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,71 3.77 left hand 2414902 KM63TSS40LSTFCL16 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,71 3.77 NE 90° • Steel D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2265369 KM63TSS32LNER3 32 1.26 40 1.57 22 .866 112 4.412 140 5.512 NG3L 1,34 2.95 left hand 2265370 KM63TSS32LNEL3 32 1.26 40 1.57 22 .866 112 4.412 140 5.512 NG3R 1,34 2.95 Spare Parts clamp catalog number clamp screw right hand KM63TSS32LNER3 CM73 MS1489 left hand KM63TSS32LNEL3 CM72 MS1489 A220 WWW.WIDIA.COM
