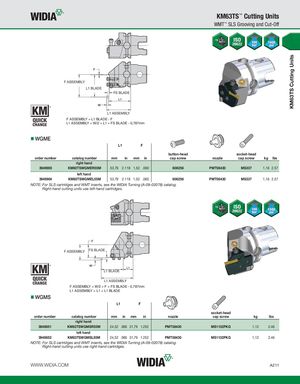

KM63TS™ Cutting Units WMT™ SLS Grooving and Cut-Off KM63TS Cutting Units F ASSEMBLY L1 BLADE FS BLADE L1 ASSEMBLY F ASSEMBLY = L1 BLADE - F L1 ASSEMBLY = W/2 + L1 + FS BLADE - 0,787mm  WGME L1 F button-head socket-head order number catalog number mm in mm in cap screw nozzle cap screw kg lbs right hand 3949903 KM63TSWGMER55M 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,16 2.57 left hand 3949904 KM63TSWGMEL55M 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,16 2.57 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. F ASSEMBLY FS BLADE L1 BLADE L1 ASSEMBLY F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE  WGMS L1 F socket-head order number catalog number mm in mm in nozzle cap screw kg lbs right hand 3949851 KM63TSWGMSR55M 24,52 .965 31,79 1.252 PMT08430 MS1132PKG 1,12 2.46 left hand 3949852 KM63TSWGMSL55M 24,52 .965 31,79 1.252 PMT08430 MS1132PKG 1,12 2.46 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. WWW.WIDIA.COM A211
