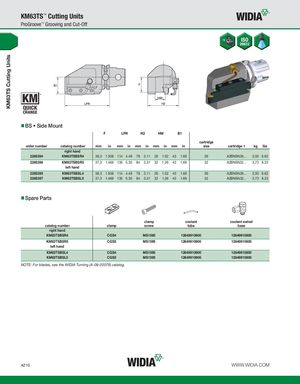

KM63TS Cutting Units KM63TS™ Cutting Units ProGroove™ Grooving and Cut-Off BS • Side Mount F LPR H2 HW B1 cartridge order number catalog number mm in mm in mm in mm in mm in size cartridge 1 kg lbs right hand 2265394 KM63TSBSR4 38,3 1.508 114 4.49 79 3.11 26 1.02 43 1.69 26 A2BNSN26... 3,00 6.62 2265396 KM63TSBSR5 37,3 1.469 135 5.30 84 3.31 32 1.26 43 1.69 32 A2BNSN32... 3,73 8.23 left hand 2265395 KM63TSBSL4 38,3 1.508 114 4.49 79 3.11 26 1.02 43 1.69 26 A2BNSN26... 3,00 6.62 2265397 KM63TSBSL5 37,3 1.469 135 5.30 84 3.31 32 1.26 43 1.69 32 A2BNSN32... 3,73 8.23 Spare Parts clamp coolant coolant swivel catalog number clamp screw tube base right hand KM63TSBSR4 CGS4 MS1595 12649910900 12649910800 KM63TSBSR5 CGS5 MS1595 12649910900 12649910800 left hand KM63TSBSL4 CGS4 MS1595 12649910900 12649910800 KM63TSBSL5 CGS5 MS1595 12649910900 12649910800 NOTE: For blades, see the WIDIA Turning (A-09-02078) catalog. A210 WWW.WIDIA.COM
