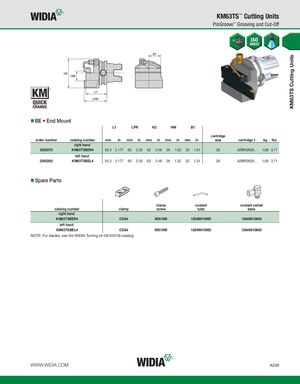

KM63TS Cutting Units KM63TS™ Cutting Units ProGroove™ Grooving and Cut-Off BE • End Mount L1 LPR H2 HW B1 cartridge order number catalog number mm in mm in mm in mm in mm in size cartridge 1 kg lbs right hand 2265372 KM63TSBER4 55,3 2.177 60 2.35 63 2.48 26 1.02 32 1.24 26 A2BNSN26... 1,68 3.71 left hand 2265393 KM63TSBEL4 55,3 2.177 60 2.35 63 2.48 26 1.02 32 1.24 26 A2BNSN26... 1,68 3.71 Spare Parts clamp coolant coolant swivel catalog number clamp screw tube base right hand KM63TSBER4 CGS4 MS1595 12649910900 12649910800 left hand KM63TSBEL4 CGS4 MS1595 12649910900 12649910800 NOTE: For blades, see the WIDIA Turning (A-09-02078) catalog. WWW.WIDIA.COM A209
