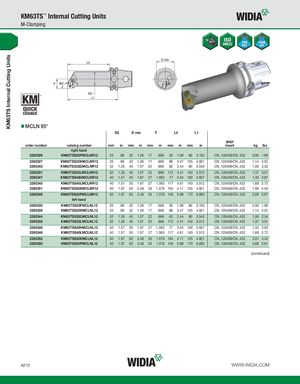

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units M-Clamping MCLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2265329 KM63TSS25FMCLNR12 25 .98 32 1.26 17 .669 50 1.99 80 3.150 CN..120408/CN..432 0,90 1.99 2265327 KM63TSS25KMCLNR12 25 .98 32 1.26 17 .669 88 3.47 125 4.921 CN..120408/CN..432 1,14 2.52 2265343 KM63TSS32GMCLNR12 32 1.26 40 1.57 22 .866 62 2.44 90 3.543 CN..120408/CN..432 1,05 2.32 2265331 KM63TSS32LMCLNR12 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 CN..120408/CN..432 1,37 3.01 2265347 KM63TSS40HMCLNR12 40 1.57 50 1.97 27 1.063 77 3.04 100 3.937 CN..120408/CN..432 1,30 2.87 2265345 KM63TSS40LMCLNR12 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 CN..120408/CN..432 1,69 3.72 2265351 KM63TSS50KMCLNR12 50 1.97 63 2.48 35 1.378 104 4.11 125 4.921 CN..120408/CN..432 1,99 4.40 2265349 KM63TSS50PMCLNR12 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 CN..120408/CN..432 2,68 5.91 left hand 2265330 KM63TSS25FMCLNL12 25 .98 32 1.26 17 .669 50 1.99 80 3.150 CN..120408/CN..432 0,90 1.99 2265328 KM63TSS25KMCLNL12 25 .98 32 1.26 17 .669 88 3.47 125 4.921 CN..120408/CN..432 1,14 2.52 2265344 KM63TSS32GMCLNL12 32 1.26 40 1.57 22 .866 62 2.44 90 3.543 CN..120408/CN..432 1,06 2.34 2265332 KM63TSS32LMCLNL12 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 CN..120408/CN..432 1,37 3.01 2265348 KM63TSS40HMCLNL12 40 1.57 50 1.97 27 1.063 77 3.04 100 3.937 CN..120408/CN..432 1,33 2.93 2265346 KM63TSS40LMCLNL12 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 CN..120408/CN..432 1,69 3.72 2265352 KM63TSS50KMCLNL12 50 1.97 63 2.48 35 1.378 104 4.11 125 4.921 CN..120408/CN..432 2,01 4.43 2265350 KM63TSS50PMCLNL12 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 CN..120408/CN..432 2,68 5.91 (continued) A212 WWW.WIDIA.COM
