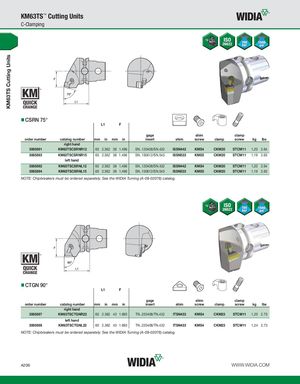

KM63TS Cutting Units KM63TS™ Cutting Units C-Clamping CSRN 75° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3065891 KM63TSCSRNR12 60 2.362 38 1.496 SN..120408/SN.432 ISSN442 KMS4 CKM20 STCM11 1,20 2.64 3065893 KM63TSCSRNR15 60 2.362 38 1.496 SN..150612/SN.543 ISSN533 KMS5 CKM20 STCM11 1,19 2.63 left hand 3065892 KM63TSCSRNL12 60 2.362 38 1.496 SN..120408/SN.432 ISSN442 KMS4 CKM20 STCM11 1,20 2.64 3065894 KM63TSCSRNL15 60 2.362 38 1.496 SN..150612/SN.543 ISSN533 KMS5 CKM20 STCM11 1,19 2.63 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. CTGN 90° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3065897 KM63TSCTGNR22 60 2.362 43 1.693 TN..220408/TN.432 ITSN433 KMS4 CKM23 STCM11 1,25 2.75 left hand 3065898 KM63TSCTGNL22 60 2.362 43 1.693 TN..220408/TN.432 ITSN433 KMS4 CKM23 STCM11 1,24 2.73 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. A206 WWW.WIDIA.COM
