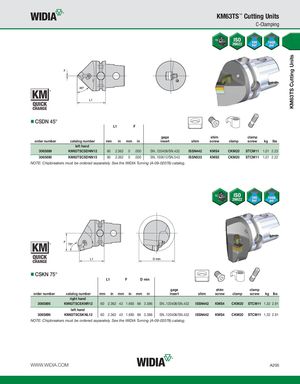

KM63TS Cutting Units KM63TS™ Cutting Units C-Clamping CSDN 45° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs left hand 3065889 KM63TSCSDNN12 60 2.362 0 .000 SN..120408/SN.432 ISSN442 KMS4 CKM20 STCM11 1,01 2.23 3065890 KM63TSCSDNN15 60 2.362 0 .000 SN..150612/SN.543 ISSN533 KMS5 CKM20 STCM11 1,01 2.22 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. CSKN 75° L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw clamp screw kg lbs right hand 3065895 KM63TSCSKNR12 60 2.362 43 1.693 86 3.386 SN..120408/SN.432 ISSN442 KMS4 CKM20 STCM11 1,32 2.91 left hand 3065896 KM63TSCSKNL12 60 2.362 43 1.693 86 3.386 SN..120408/SN.432 ISSN442 KMS4 CKM20 STCM11 1,32 2.91 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. WWW.WIDIA.COM A205
