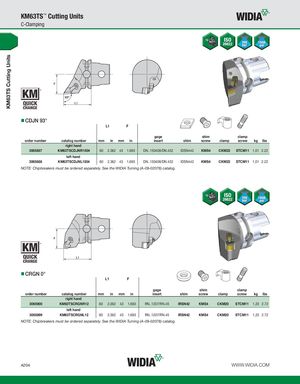

KM63TS Cutting Units KM63TS™ Cutting Units C-Clamping CDJN 93° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3065887 KM63TSCDJNR1504 60 2.362 43 1.693 DN..150408/DN.432 IDSN442 KMS4 CKM23 STCM11 1,01 2.22 left hand 3065888 KM63TSCDJNL1504 60 2.362 43 1.693 DN..150408/DN.432 IDSN442 KMS4 CKM23 STCM11 1,01 2.22 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. CRGN 0° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3065900 KM63TSCRGNR12 60 2.362 43 1.693 RN..1207/RN.45 IRSN42 KMS4 CKM20 STCM11 1,23 2.72 left hand 3065899 KM63TSCRGNL12 60 2.362 43 1.693 RN..1207/RN.45 IRSN42 KMS4 CKM20 STCM11 1,23 2.72 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. A204 WWW.WIDIA.COM
