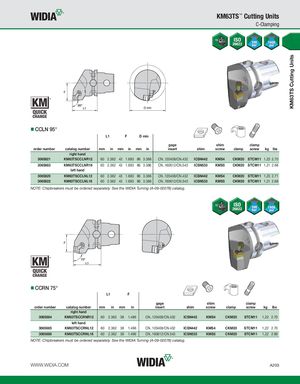

KM63TS Cutting Units KM63TS™ Cutting Units C-Clamping CCLN 95° L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw clamp screw kg lbs right hand 3065821 KM63TSCCLNR12 60 2.362 43 1.693 86 3.386 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 1,23 2.70 3065883 KM63TSCCLNR16 60 2.362 43 1.693 86 3.386 CN..160612/CN.543 ICSN533 KMS5 CKM20 STCM11 1,21 2.68 left hand 3065820 KM63TSCCLNL12 60 2.362 43 1.693 86 3.386 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 1,23 2.71 3065822 KM63TSCCLNL16 60 2.362 43 1.693 86 3.386 CN..160612/CN.543 ICSN533 KMS5 CKM20 STCM11 1,21 2.68 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. CCRN 75° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3065884 KM63TSCCRNR12 60 2.362 38 1.496 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 1,22 2.70 left hand 3065885 KM63TSCCRNL12 60 2.362 38 1.496 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 1,22 2.70 3065886 KM63TSCCRNL16 60 2.362 38 1.496 CN..160612/CN.543 ICSN533 KMS5 CKM20 STCM11 1,22 2.69 NOTE: Chipbreakers must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. WWW.WIDIA.COM A203
