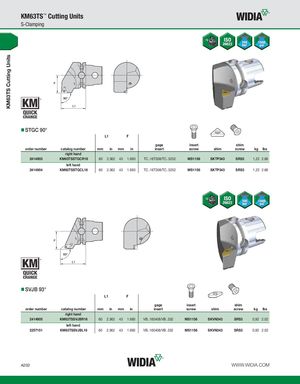

KM63TS Cutting Units KM63TS™ Cutting Units S-Clamping STGC 90° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 2414903 KM63TSSTGCR16 60 2.362 43 1.693 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,22 2.69 left hand 2414904 KM63TSSTGCL16 60 2.362 43 1.693 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,22 2.69 SVJB 93° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 2414905 KM63TSSVJBR16 60 2.362 43 1.693 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,92 2.02 left hand 2257151 KM63TSSVJBL16 60 2.362 43 1.693 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,92 2.02 A202 WWW.WIDIA.COM
