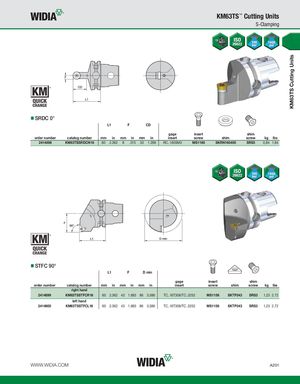

KM63TS Cutting Units KM63TS™ Cutting Units S-Clamping SRDC 0° L1 F CD gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs 2414896 KM63TSSRDCN16 60 2.362 8 .315 33 1.299 RC..1605M0 MS1160 SKRN160400 SRS5 0,84 1.84 STFC 90° L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 2414899 KM63TSSTFCR16 60 2.362 43 1.693 86 3.386 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,23 2.72 left hand 2414900 KM63TSSTFCL16 60 2.362 43 1.693 86 3.386 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,23 2.72 WWW.WIDIA.COM A201
