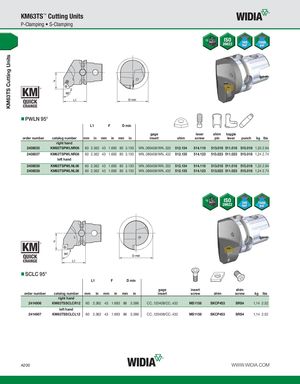

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping • S-Clamping PWLN 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2408035 KM63TSPWLNR06 60 2.362 43 1.693 80 3.150 WN..060408/WN..332 512.134 514.118 513.018 511.018 515.018 1,33 2.94 2408037 KM63TSPWLNR08 60 2.362 43 1.693 80 3.150 WN..080408/WN..432 512.135 514.123 513.023 511.023 515.018 1,24 2.74 left hand 2408036 KM63TSPWLNL06 60 2.362 43 1.693 80 3.150 WN..060408/WN..332 512.134 514.118 513.018 511.018 515.018 1,33 2.94 2408038 KM63TSPWLNL08 60 2.362 43 1.693 80 3.150 WN..080408/WN..432 512.135 514.123 513.023 511.023 515.018 1,24 2.74 SCLC 95° L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 2414906 KM63TSSCLCR12 60 2.362 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,14 2.52 left hand 2414907 KM63TSSCLCL12 60 2.362 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,14 2.52 A200 WWW.WIDIA.COM
