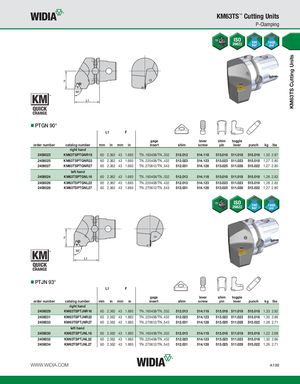

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PTGN 90° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2408023 KM63TSPTGNR16 60 2.362 43 1.693 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,30 2.87 2408025 KM63TSPTGNR22 60 2.362 43 1.693 TN..220408/TN..432 512.023 514.123 513.023 511.023 515.018 1,27 2.80 2408027 KM63TSPTGNR27 60 2.362 43 1.693 TN..270612/TN..543 512.031 514.128 513.025 511.028 515.022 1,27 2.80 left hand 2408024 KM63TSPTGNL16 60 2.362 43 1.693 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,28 2.82 2408026 KM63TSPTGNL22 60 2.362 43 1.693 TN..220408/TN..432 512.013 514.123 513.023 511.023 515.018 1,28 2.82 2408028 KM63TSPTGNL27 60 2.362 43 1.693 TN..270612/TN..543 512.031 514.128 513.025 511.028 515.022 1,27 2.80 PTJN 93° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2408029 KM63TSPTJNR16 60 2.362 43 1.693 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,33 2.92 2408031 KM63TSPTJNR22 60 2.362 43 1.693 TN..220408/TN..432 512.023 514.123 513.023 511.023 515.018 1,30 2.86 2408033 KM63TSPTJNR27 60 2.362 43 1.693 TN..270612/TN..543 512.031 514.128 513.025 511.028 515.022 1,26 2.71 left hand 2408030 KM63TSPTJNL16 60 2.362 43 1.693 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,22 2.68 2408032 KM63TSPTJNL22 60 2.362 43 1.693 TN..220408/TN..432 512.023 514.123 513.023 511.023 515.018 1,30 2.86 2408034 KM63TSPTJNL27 60 2.362 43 1.693 TN..270612/TN..543 512.031 514.128 513.025 511.028 515.022 1,26 2.71 WWW.WIDIA.COM A199
