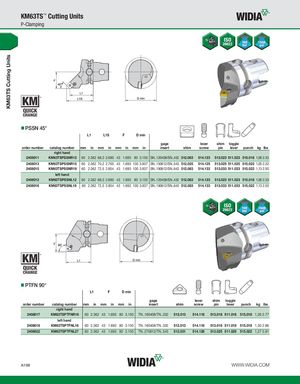

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PSSN 45° L1 L1S F D min gage lever shim toggle order number catalog number mm in mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2408011 KM63TSPSSNR12 60 2.362 68,3 2.690 43 1.693 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,06 2.33 2408013 KM63TSPSSNR15 60 2.362 70,2 2.765 43 1.693 100 3.937 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,05 2.32 2408015 KM63TSPSSNR19 60 2.362 72,5 2.854 43 1.693 100 3.937 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,13 2.50 left hand 2408012 KM63TSPSSNL12 60 2.362 68,3 2.690 43 1.693 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,06 2.33 2408016 KM63TSPSSNL19 60 2.362 72,5 2.854 43 1.693 100 3.937 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,13 2.50 PTFN 90° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2408017 KM63TSPTFNR16 60 2.362 43 1.693 80 3.150 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,26 2.77 left hand 2408018 KM63TSPTFNL16 60 2.362 43 1.693 80 3.150 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 1,30 2.86 2408022 KM63TSPTFNL27 60 2.362 43 1.693 80 3.150 TN..270612/TN..543 512.031 514.128 513.025 511.028 515.022 1,27 2.81 A198 WWW.WIDIA.COM
