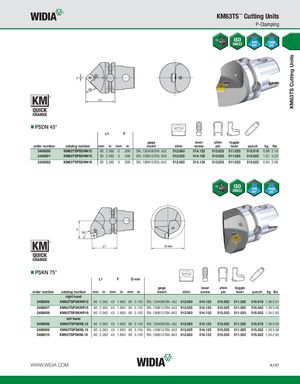

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PSDN 45° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs 2408000 KM63TSPSDNN12 60 2.362 0 .000 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,98 2.16 2408001 KM63TSPSDNN15 60 2.362 0 .000 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,01 2.23 2408002 KM63TSPSDNN19 60 2.362 0 .000 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 0,94 2.06 PSKN 75° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2408005 KM63TSPSKNR12 60 2.362 43 1.693 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,36 3.01 2408007 KM63TSPSKNR15 60 2.362 43 1.693 80 3.150 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,39 3.06 2408009 KM63TSPSKNR19 60 2.362 43 1.693 80 3.150 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,34 2.95 left hand 2408006 KM63TSPSKNL12 60 2.362 43 1.693 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,36 3.00 2408008 KM63TSPSKNL15 60 2.362 43 1.693 80 3.150 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,39 3.06 2408010 KM63TSPSKNL19 60 2.362 43 1.693 80 3.150 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,34 2.95 WWW.WIDIA.COM A197
