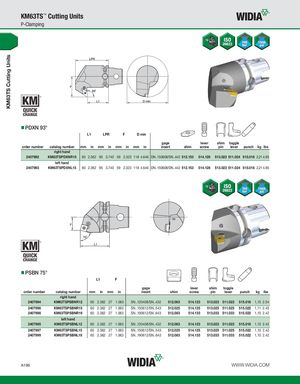

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PDXN 93° L1 LPR F D min gage lever shim toggle order number catalog number mm in mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2407992 KM63TSPDXNR15 60 2.362 95 3.740 59 2.323 118 4.646 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 2,21 4.85 left hand 2407993 KM63TSPDXNL15 60 2.362 95 3.740 59 2.323 118 4.646 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 2,21 4.85 PSBN 75° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2407994 KM63TSPSBNR12 60 2.362 27 1.063 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,15 2.54 2407996 KM63TSPSBNR15 60 2.362 27 1.063 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,11 2.45 2407998 KM63TSPSBNR19 60 2.362 27 1.063 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,10 2.42 left hand 2407995 KM63TSPSBNL12 60 2.362 27 1.063 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 1,10 2.42 2407997 KM63TSPSBNL15 60 2.362 27 1.063 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 1,10 2.42 2407999 KM63TSPSBNL19 60 2.362 27 1.063 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,10 2.42 A196 WWW.WIDIA.COM
