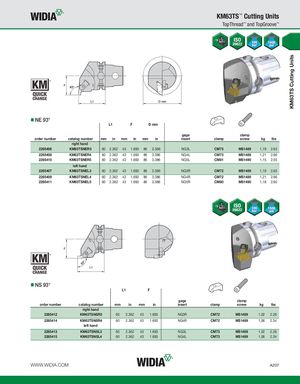

KM63TS Cutting Units KM63TS™ Cutting Units TopThread™ and TopGroove™ NE 93° L1 F D min gage clamp order number catalog number mm in mm in mm in insert clamp screw kg lbs right hand 2265406 KM63TSNER3 60 2.362 43 1.693 86 3.386 NG3L CM73 MS1489 1,19 2.63 2265408 KM63TSNER4 60 2.362 43 1.693 86 3.386 NG4L CM73 MS1489 1,21 2.66 2265410 KM63TSNER5 60 2.362 43 1.693 86 3.386 NG5L CM81 MS1490 1,15 2.55 left hand 2265407 KM63TSNEL3 60 2.362 43 1.693 86 3.386 NG3R CM72 MS1489 1,19 2.63 2265409 KM63TSNEL4 60 2.362 43 1.693 86 3.386 NG4R CM72 MS1489 1,21 2.66 2265411 KM63TSNEL5 60 2.362 43 1.693 86 3.386 NG5R CM80 MS1490 1,18 2.60 NS 93° L1 F gage clamp order number catalog number mm in mm in insert clamp screw kg lbs right hand 2265412 KM63TSNSR3 60 2.362 43 1.693 NG3R CM72 MS1489 1,02 2.26 2265414 KM63TSNSR4 60 2.362 43 1.693 NG4R CM72 MS1489 1,06 2.34 left hand 2265413 KM63TSNSL3 60 2.362 43 1.693 NG3L CM73 MS1489 1,02 2.26 2265415 KM63TSNSL4 60 2.362 43 1.693 NG4L CM73 MS1489 1,06 2.34 WWW.WIDIA.COM A207
