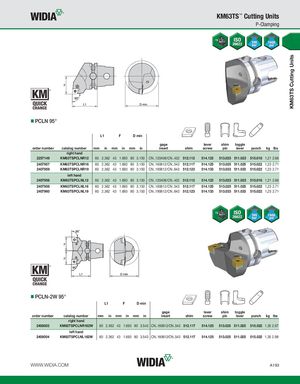

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PCLN 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2257149 KM63TSPCLNR12 60 2.362 43 1.693 80 3.150 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 1,21 2.66 2407957 KM63TSPCLNR16 60 2.362 43 1.693 80 3.150 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,23 2.71 2407959 KM63TSPCLNR19 60 2.362 43 1.693 80 3.150 CN..190612/CN..643 512.123 514.133 513.033 511.033 515.022 1,23 2.71 left hand 2407956 KM63TSPCLNL12 60 2.362 43 1.693 80 3.150 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 1,21 2.66 2407958 KM63TSPCLNL16 60 2.362 43 1.693 80 3.150 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,23 2.71 2407960 KM63TSPCLNL19 60 2.362 43 1.693 80 3.150 CN..190612/CN..643 512.123 514.133 513.033 511.033 515.022 1,23 2.71 PCLN-2W 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2408003 KM63TSPCLNR162W 60 2.362 43 1.693 90 3.543 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,35 2.97 left hand 2408004 KM63TSPCLNL162W 60 2.362 43 1.693 90 3.543 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,35 2.98 WWW.WIDIA.COM A193
