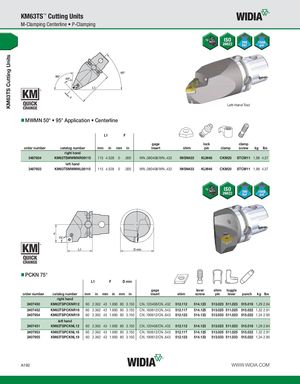

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping Centerline • P-Clamping Left-Hand Tool MWMN 50° • 95° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3487604 KM63TSMWMNR08115 115 4.528 0 .000 WN..080408/WN..432 IWSN433 KLM46 CKM20 STCM11 1,98 4.37 left hand 3487603 KM63TSMWMNL08115 115 4.528 0 .000 WN..080408/WN..432 IWSN433 KLM46 CKM20 STCM11 1,98 4.37 PCKN 75° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 2407450 KM63TSPCKNR12 60 2.362 43 1.693 80 3.150 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 1,29 2.84 2407452 KM63TSPCKNR16 60 2.362 43 1.693 80 3.150 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,32 2.91 2407954 KM63TSPCKNR19 60 2.362 43 1.693 80 3.150 CN..190612/CN..643 512.123 514.133 513.033 511.023 515.022 1,34 2.95 left hand 2407451 KM63TSPCKNL12 60 2.362 43 1.693 80 3.150 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 1,29 2.84 2407953 KM63TSPCKNL16 60 2.362 43 1.693 80 3.150 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 1,32 2.91 2407955 KM63TSPCKNL19 60 2.362 43 1.693 80 3.150 CN..190612/CN..643 512.123 514.133 513.033 511.033 515.022 1,34 2.95 A192 WWW.WIDIA.COM
